How To Replace The Motherboard of Combi oven

02 Sep 2022

How To Replace The Motherboard of Combi oven

Combi oven YSE-CB-JJ series

Material in need: Motherboard

Tools in need: Phillips screwdriver, gloves

Special Notice: Before maintenance work, it is necessary to ensure that the machine is powered off and operate under safe conditions. There are many cable plugs, do not make mistakes.

Step 1: First, you need to open the control panel of the machine. Use a Phillips screwdriver to loosen the screws at the bottom to lift the panel up slightly and flip it to the left to open.

How To Replace The Motherboard of Combi oven

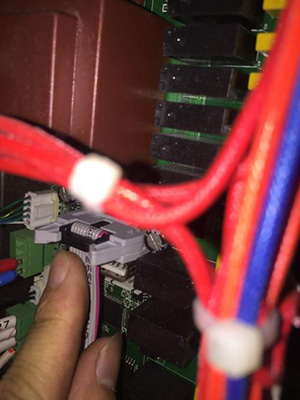

Step 2: Second, find the white cable plug of the Motherboard and unplug it.

How To Replace The Motherboard of Combi oven

Step 3: Third, find the wiring plug of the Motherboard on the edge, and pull out all the wiring plugs. Pull out all wiring plugs.

How To Replace The Motherboard of Combi oven

Step 4: Then remove the plastic nut fixing the motherboard to take off the motherboard, replace the motherboard and re-install the new plastic nut; Secondly. Plug back all the cable plugs.

How To Replace The Motherboard of Combi oven

Step 5: Power on and check, after confirming that the installation is correct, replace the control panel.

Step 6: Last, repair determination to turn on the power to see if the machine is running normally.

Keywords: oven repair

Originally published 02 Sep 2022, updated 02 Sep 2022.
