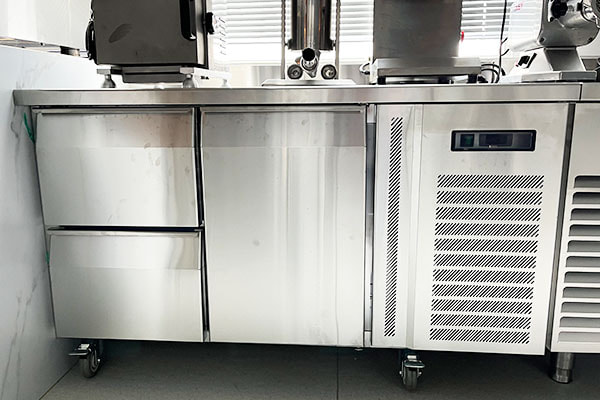

Commercial Chiller Counter With Drawers YRG-S078

Counter Chiller Freezer Commercial Chiller Counter With Drawers YRG-S078 Counter Chiller Freezer Commercial Chiller Counter With Drawers YRG-S078 Counter Chiller Freezer Commercial Chiller Counter With Drawers YRG-S078 Counter Chiller Freezer Commercial Chiller Counter With Drawers YRG-S078
CE

Manual

Add to Cart

If you have a detailed purchasing list, please contact us directly with attachments.

Model: YRG-S078

Name: Worktop Refrigerator

Material: Stainless Steel

Power Supply: Electric

Rated Power(W): 350

Refrigeration Type: Ventilated

Net Capacity(L): 260

Temperature(℃): +2~+8

Refrigerant: R134a/R290

Dimension(L*W*H mm): 1360*700*850

Packing Size(L*W*H mm): 1420*740*910

Net Weight(kg): 99

Overview

The Commercial Chiller Counter With Drawers is an innovative refrigeration solution designed for commercial establishments. This product combines the functionality of a chiller and the convenience of storage drawers, making it perfect for businesses in the food and beverage industry. The chiller section provides efficient cooling and temperature control for perishable items, ensuring optimal freshness. The drawers offer ample space for organizing and accessing various ingredients or products. With its sleek design and durable construction, this chiller counter enhances workflow efficiency and maximizes storage capacity. It is an ideal choice for restaurants, cafeterias, and other foodservice establishments seeking reliable refrigeration and convenient storage solutions.

Standard Features

The fuselage is made of 0.8mm thick SS201&304 stainless steel, which has strong corrosion resistance, high hardness, and is not easily deformed. The foam layer is not easy to fall off.

It adopts integral foaming process, with a smooth and beautiful appearance. The foam thickness is 70mm for vertical machines and 60mm for platform cabinets. The foam density is 43KG/m³.

The compressor uses Germany's Embraco refrigeration compressor, which has a long service life, low failure rate, fast cooling, energy-saving and noise reduction, and low noise level (below 55-60 decibels).

The temperature controller uses Italy's Carel temperature controller for precise temperature control and energy-saving.

It uses Italy's ELCO motor, which has a long service life, low failure rate, energy-saving, and noise reduction.

The fan uses Taiwan's SUNON, which has high air volume, low noise, high temperature resistance, and long service life.

The material of the pipes is all copper, which provides strong refrigeration and energy-saving.

Automatic return door.

Magnetic sealing strip: strong sealing, good insulation effect.

Automatic defrost function: the water generated during defrosting is evaporated by the waste heat of the condenser. There is no need to install a floor drain in the refrigerated cabinet area, and it is energy-saving and environmentally friendly.

It adopts air cooling. The advantages of air cooling: even temperature distribution and fast cooling. The disadvantage is that it causes the loss of moisture in stored food, so it is recommended to use packaging or storage containers.

Environmental requirements: Below 35 degrees Celsius. The cooling effect will be affected if the ambient temperature exceeds 35 degrees Celsius, so special customization is required.

It uses Fulterer guide rails from Italy, which have strong load-bearing capacity.

Function

Exterior Cabinet: This is the outer casing of the chiller counter, usually made of stainless steel or other durable materials. It provides structural support and protection for the internal components.

Worktop Surface: The worktop surface is the flat area on the top of the refrigerator that can be used as a workspace for food preparation or as a storage area for small kitchen appliances and utensils.

Compressor: The compressor is responsible for compressing the refrigerant gas, raising its temperature and pressure. It plays a crucial role in the cooling process by facilitating the circulation of the refrigerant through the system.

Condenser: The condenser is a heat exchanger that cools down the high-pressure, high-temperature refrigerant vapor coming from the compressor. It dissipates heat and converts the refrigerant into a high-pressure liquid state.

Evaporator: The evaporator is another heat exchanger located inside the chiller counter. It absorbs heat from the interior of the unit, causing the liquid refrigerant to evaporate and turn into a low-pressure vapor.

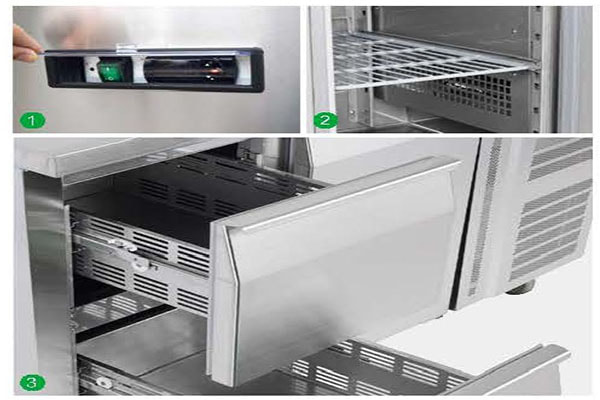

Drawers: The chiller counter is equipped with drawers or compartments designed for storing and organizing food items. These drawers are typically made of durable materials, such as stainless steel, and are fitted with handles or pulls for easy access.

Door(s): The door(s) of chiller counter provide access to the interior storage space. They are equipped with seals to maintain an airtight environment and prevent cold air from escaping.

Temperature Control Panel: The control panel allows users to adjust and set the desired temperature inside the chiller counter. It may also include additional functions, such as defrost control, temperature display, and other settings related to the operation of the unit.

Drainage System: As condensation occurs during the cooling process, a drainage system is incorporated to collect and remove the water. This ensures that excess moisture does not accumulate within the chiller counter.

Optional Features

This Commercial Chiller Counter With Drawers can be customized according to customer requirements to have a stainless steel backsplash style with a height of 100mm, which helps prevent water from reaching the back of the machine. Additionally, it can also be made with a locking door feature to enhance the security of the refrigerator.
